PID Adjustment

1: Press the ( <</AT ) button to switch between the 3 digits of temp control.



2: Use the arrow keys to move temp up & down to desired temperature.



3: Press the ( <</AT ) button and hold to set the tempature.

PID Auto Tune

1: Put 2 cups in each pot that you plan to do the auto tune procedure to. I recommend using a cap or heat stabilizer with 2 cups of plastic in the system.



2: Close and latch lids & install motors then turn on speed control to 50%.



3: set temp to 200 F and then press and hold the ( <</AT ) button till the ( AT ) light comes on and let the system run threw its learning mode till the( AT ) light turns off.



Once the auto tune is complete you are good to use the system.

DO NOT TRY HEATING RIGHT TO 350 F YOU WILL BURN PLASTIC!!!!

Recomendeed Tempature's

1: Set temperature to 200 F and wait till heat stabilizes.



2: Once the heat has stabilized you can then set the temperature to 350 F.



3: I know you might not shoot at 350 F but by letting the system hit this mark will make sure the plastic has kicked and then you can lower the heat to your prefered temps.

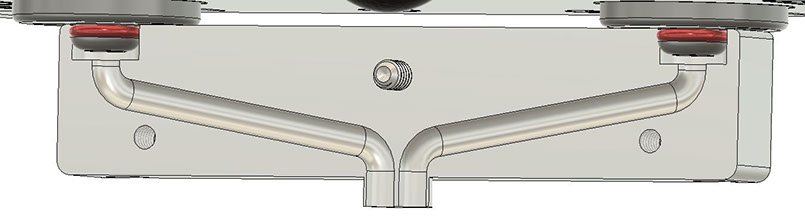

Cleaning out the mixing head

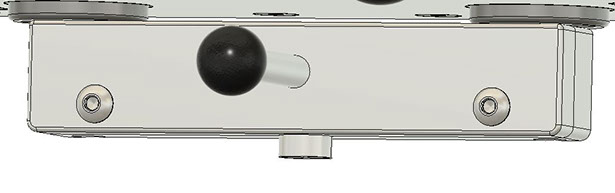

1: Remove front two screws with included long T handle.



2: Once the screws have been removed you can grab the ball and pull the front of the mixing head off to clean. Once clean reverse operations to re install.



The mixing head has been designed for easy cleaning and will not let the plastic cure during oporation.
